KONE TRANSITMASTER™ 120

Designed for demanding people flow

Product information

Description

The KONE TransitMaster™ 120 is a durable, eco-efficient escalator optimized for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.

Specifications

Operational environment: indoor, semi-outdoor, outdoor
Speed: 0.5, 0.65, 0.75 m/s
Inclination: 27.3º, 30º, 35º
Step width: 800, 1000 mm
Vertical rise: up to 15 m

Safety

Safety is the starting point for every KONE solution. KONE TransitMaster 120 conforms to all local and international safety codes.
We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

Escalator solutions

Product name	Type	Segment	Maximum rise	Speed	Inclination	KONE TransVario direct drive available	24/7 Connected Services available	Energy-efficiency class
TravelMaster™ 110	Escalator	Commercial, retail, hotel, office, multi-use, stadium, medical	13 m	0.5 m/s	30°, 35°	TravelMaster™ 110T	Yes	A+++
TravelMaster™ 115	Inclined autowalk	Commercial, retail, hotel, office, multi-use, stadium, medical	7 m	0.5 m/s	10°, 12°		Yes	A+++
TravelMaster™ 120	Escalator	Infrastructure	15 m	0.5, 0.65, 0.75 m/s	27.3°, 30°, 35°	TransitMaster™ 120T	Yes	A+++
TravelMaster™ 140	Escalator	Infrastructure	35 m	0.5, 0.65, 0.75 m/s	27.3°, 30°	TransitMaster™ 140T	Yes	A+++
TravelMaster™ 165	Horizontal autowalk	Infrastructure	100 m length	0.5, 0.65, 0.75 m/s	0-6°		Yes	A+++

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE TransitMaster™ 120

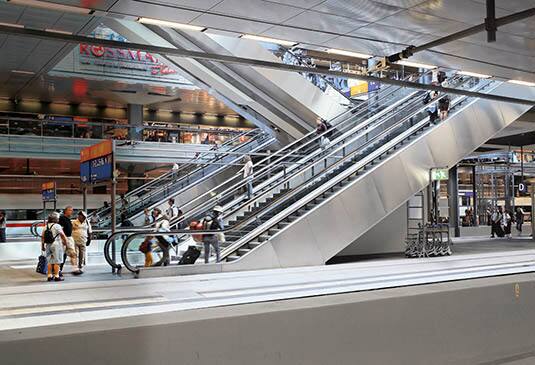

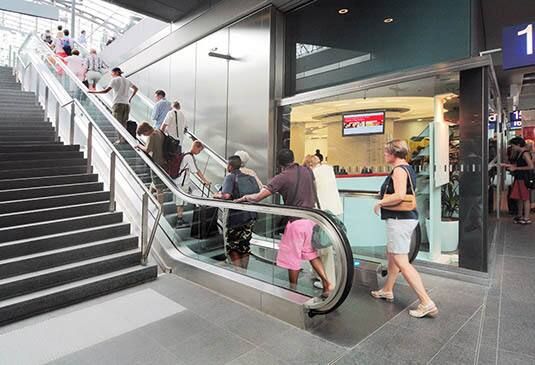

The eco-efficient KONE TransitMaster 120 escalator is designed for round-the-clock operation in environments with medium to high traffic flow, such as mass transit hubs and airports.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE TransVario factsheet

TransVario drive - a premium escalator drive option for even better escalator performance, space-efficiency and sustainability.

Options and highlights

ENERGY-EFFICIENCY

Smart operational modes and inverter optimize energy consumption under different load conditions
Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including:

New traffic signalization solutions to provide extra guidance
Audible alarms provide clear guidance on escalator travel direction
Alarm for travel direction if passengers enter an escalator in the wrong direction
Fall-prevention barrier and extended balustrades provide additional passenger protection

Find out more about safety at KONE

DESIGN

High quality visual design for the best possible user experience:

Innovative and attractive lighting solutions that also improve passenger guidance and safety
Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
